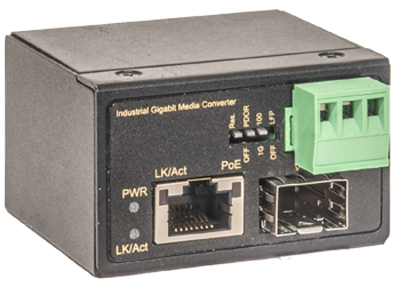

PC-BTPMCRP101-GME

  • DIN-rail and wall mounting
  • Small form factor
  • PDOR function for PoE remote control
  • Copper port: 10/100/1000, RJ45
  • Copper port with PoE af/at/bt up to 90W
  • F.O. port: 100/1000SFP
  • Power: 48-56VDC, redundant
  • Wide temperature range
DATA SHEET
CONTACT US
Product information
Technical data
Firmware
Software
Downloads
Complementary products

This industrial media converter is especially developed for applications with a high data load such as video over IP or streaming. The PDOR (PD Optical Reboot) function can be used to remotely switch the PoE output of the media converter off and on. In combination with the SFP autochecking function of our RY switches, it is possible to monitor devices such as IP cameras and automatically restart them in the event of a fault.
Its compact design, wide temperature range and high flexibility make this product ideal for the us in remote locations. The media converter disposes of a optical SFP-port and a copper port for 10/100/1000TX which supports PoE 802.3af/at/bt up to 90W. The media converter is delivered with a clamp for DIN-rail mounting and a clip for wall mounting.

Product information

Short description

Industrial mini media converter 10/100/1000BaseTX to SFP with PoE++ and PDOR function

Special features

The PDOR function, in combination with our RY switches, allows a camera malfunction to be automatically resolved.
The PDOR function also allows remote switching off and on of an IP camera.

System notes

For the active camera monitoring and control, the connected switch must support the SFP auto-checking function.

Installation method

DIN-rail mounting

Ventilation

Fanless

Contents of the pack

Media converters
DIN rail mount
Wall mounting plates

Technical data

Copper ports
1 x 10/100/1000TX, PoE af/at/bt, max. 90W
PoE ports
1 x 802.3af/at, PoE+, 90 W, Class 0-8
PoE budget
Max. 90W
Fibre optic ports
1 x 100/1000BaseFX with SFP
LC-Duplex or Simplex depending on SFP

We recommend the use of our barox SFPs. We do not test or guarantee the compatibility of our devices with SFPs of other manufacturers.

Supply voltage
1 x 48-56VDC
Power consumption
Max. 4W, without PoE
Max. 94W with PoE
IP protection class
IP30
MTBF
20°C: 1'360'600h
75°C: 209'900h
Operating temperature
-40°C to +75°C
Thermal power loss
35 BTU/h
Dimensions
36 x 50 x 59 mm (WxHxD)
Weight
Gross weight: 0.26 kg
Net weight: 0.15 kg
PoE Management
PoE remote control with PDOR function
Security
FCC Class A, CE
Standards
802.3, 10Base-T Ethernet
802.3u, 100BaseTX and 100BaseFX Fast Ethernet
802.3ab 1000BaseTX, Gigabit Ethernet
EN55032/24, ITE Equipment
EN60950-1, Safety
EN50155 / EN60068-2-6, Vibration
EN50155 / EN60068-2-27, Shock
EN50155 / EN600-2-32 Free fall
