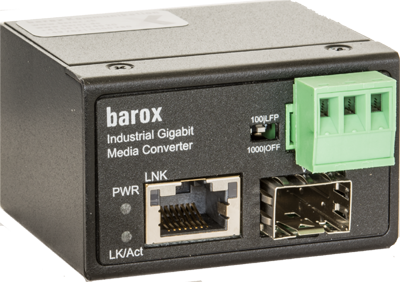

PC-MC101-GE

  • Variable optics through SFP
  • Copper port 10/100/1000TX, RJ45
  • FO port 100/1000 SFP
  • Extended temperature range -40 to 75°C
  • Compact and robust design
  • Power supply 12-56VDC
DATA SHEET
CONTACT US
Product information
Technical data
Firmware
Software
Downloads
Complementary products

This industrial media converter was developed especially for applications with high data load, such as video over IP or video streaming. The compact design, the wide temperature range and the high flexibility make this media converter ideal for remote locations. By using SFPs with 100 or 1'000 MBit/s the PC-MC101-GE can be connected to practically all common central switches. With the supplied mounting accessories, the media converter can be easily mounted on a DIN rail or on a wall.

Product information

Brief description

Industrial media converter for 10/100/1000BaseTX and SFP

System Notes

This media converter cannot be used in combination with the VDSL SFPs of the PD-VDSL-SFP series.

Technical data

Copper Ports
1x10/100/1000BaseTX, RJ45
Auto negotiation
Auto MDI/MDI-X
Full/Halfduplex
Fiber Ports

1 x 100/1000 SFP, LC-connector
Data rate of the SFP must be set by dipswitch


We recommend the use of our barox SFPs. We do not test or guarantee the compatibility of our devices with SFPs of other manufacturers.

Supply Voltage
12-56VDC, screw clamps
Without power supply, must be ordered separately
Power Consumption
2W
IP Schutzart
IP30
MTBF
20°C: 1'382'500h
75°C: 223'200h
Operating temperature
-40° to +75°C
Power Loss
7 BTU/h
Dimensions
59 x 36 x 50mm (WxHxL)
Weight
Gross weight [kg] 0.242
Net weight [kg] 0.119
Test Standards

EMC: CE, FCC, EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV
          IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
          IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free Fall: EN 60068-2-32

Security
FCC Class A, CE, UL
Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Ethernet
IEEE 802.3x Flow Control and Back Pressure
